Galassia Filtrante

100% Quartz filter floor

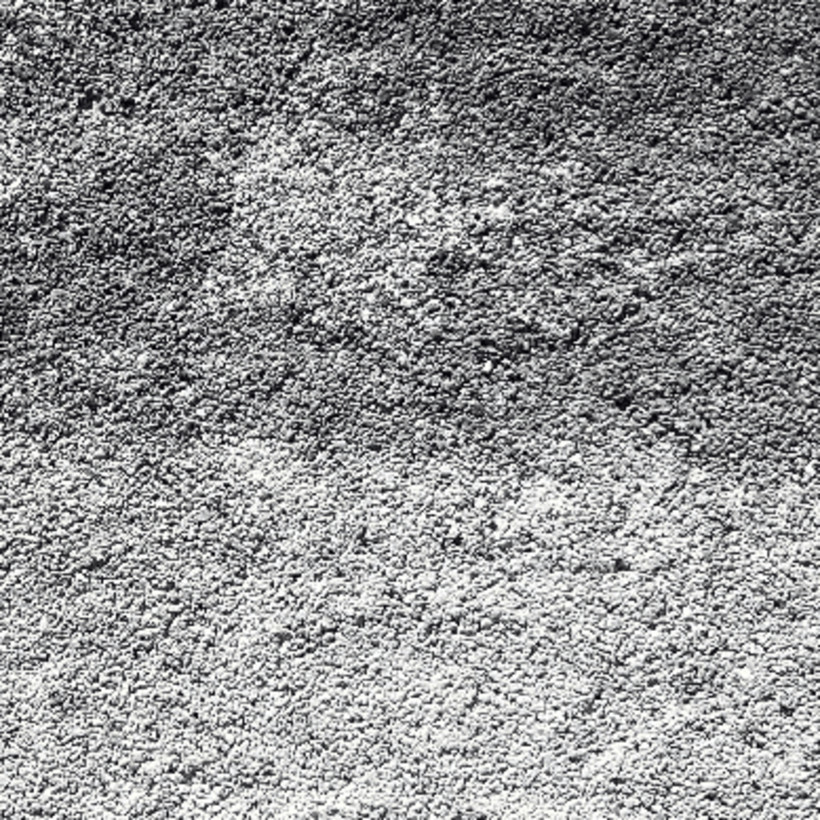

In detailDiscover Galassia Filtrante colors

The colors of the "Filtering Galaxy" floor are even brighter thanks to the fact that they are made of 100% quartz. This gives them a unique shine and brightness, which makes them incredibly attractive and eye-catching. Quartz is a natural material known for its crystalline beauty and its ability to reflect light in an extraordinary way. When "Filtering Galaxy" floor colors are created using exclusively quartz, the result is a range of hues that shine like stars in the night sky. Furthermore, the fact that the colors are made of quartz also guarantees greater resistance and durability over time. Quartz is an incredibly resistant material to weathering, wear and stains, ensuring that the 'Filter Galaxy' flooring colors retain their beauty and brilliance over the years. In conclusion, the colors of the "Filtering Galaxy" floor are made even brighter and more fascinating thanks to the fact that they are made of 100% quartz. This gives them a unique shine and light-reflecting ability that makes them incredibly attractive. By choosing the "Filtering Galaxy" floor, you can achieve extraordinary beauty that will last over time.

Terra d'umbria

Yellow-Grey

Yellow-Amber

Grey

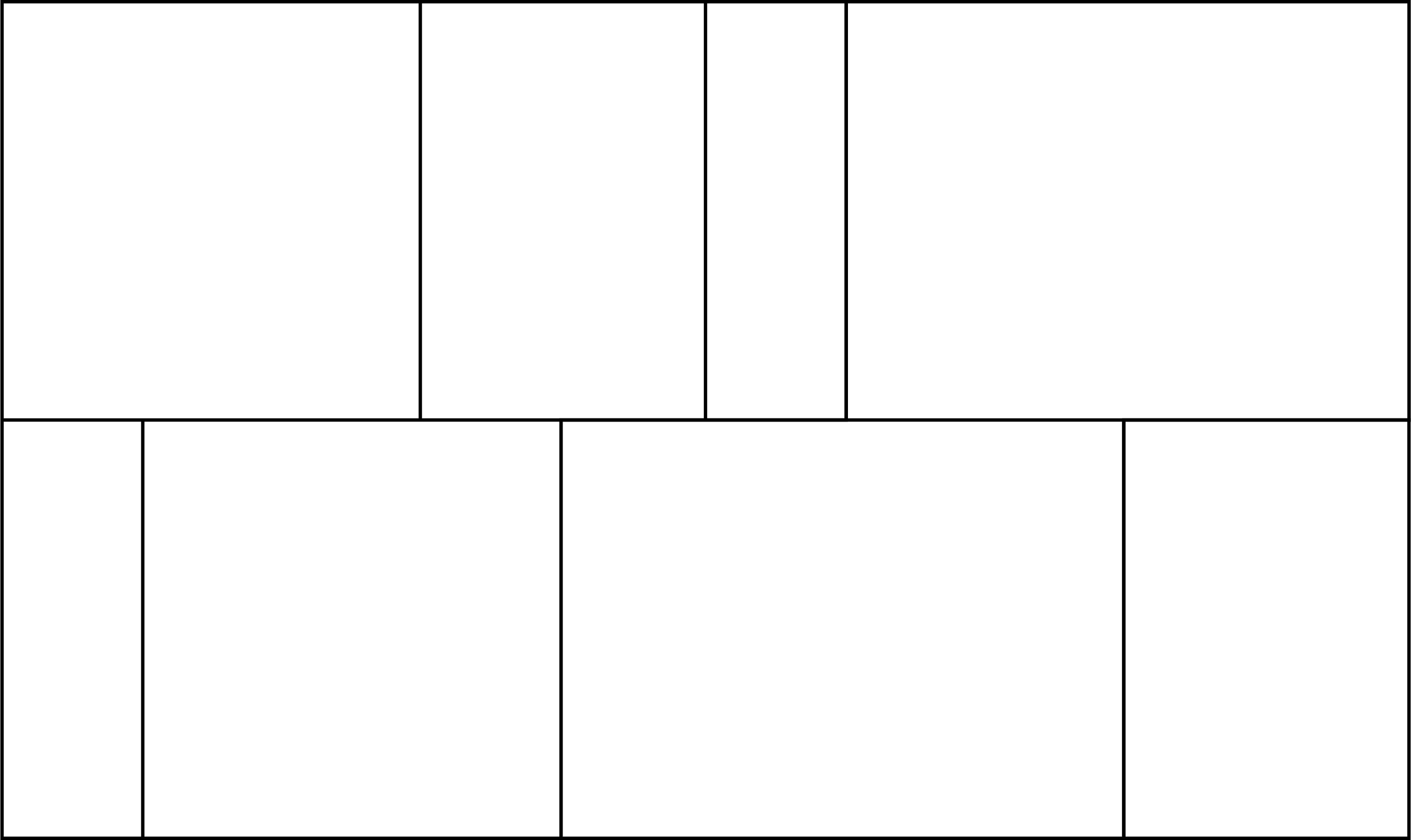

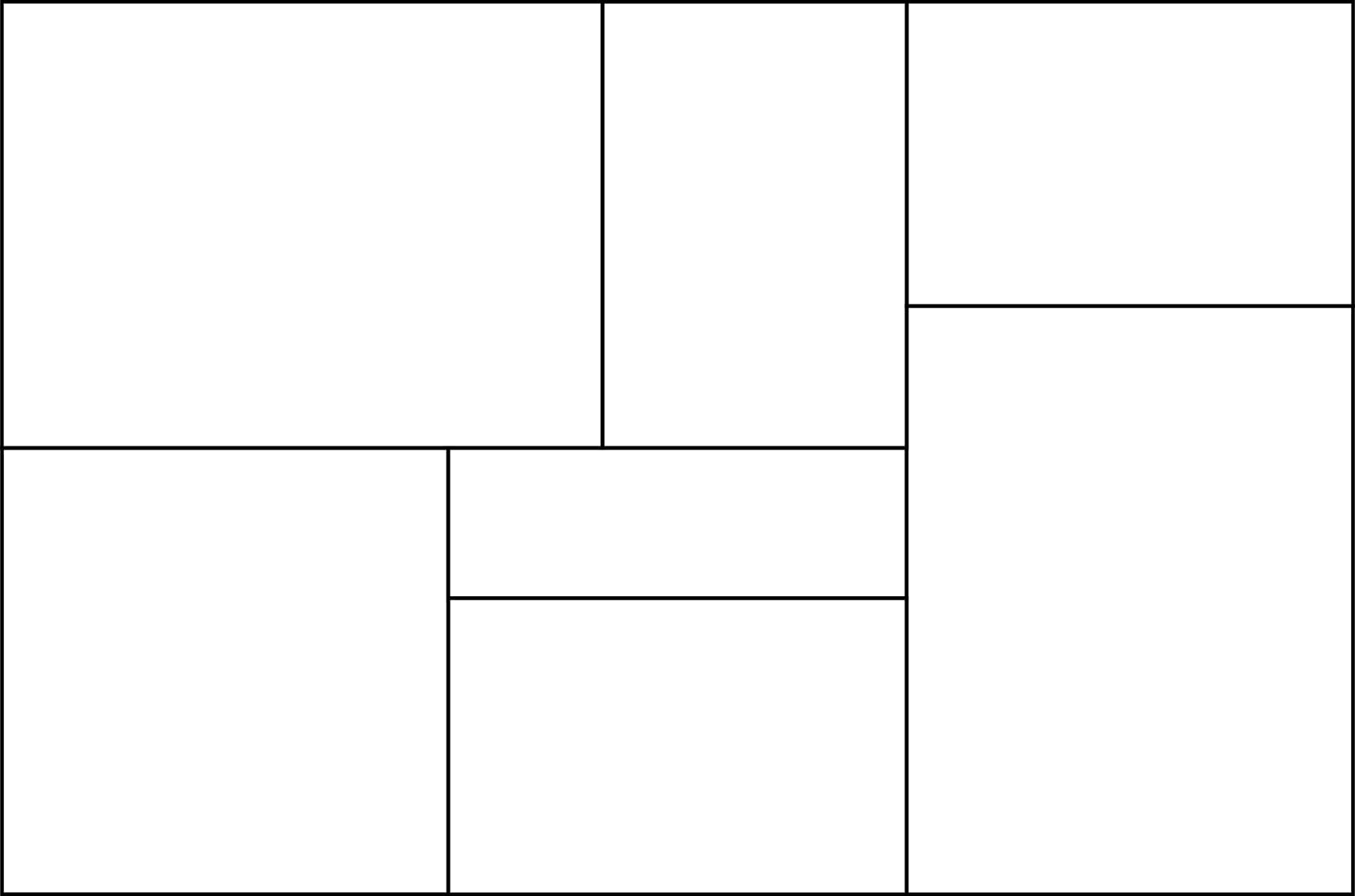

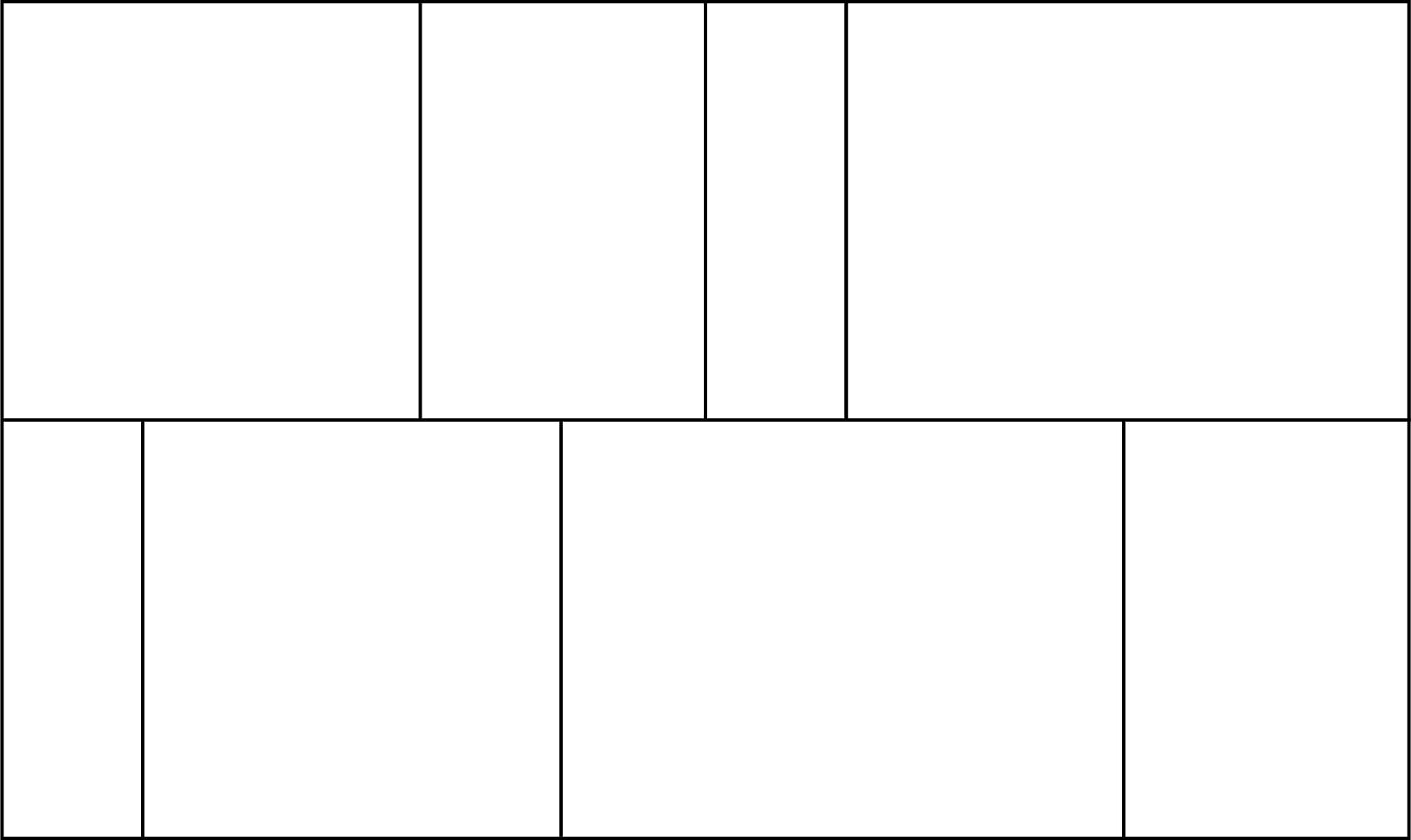

Installation types

Design and quality outdoor flooring. Discover all Favaro1 floorings and find the perfect solution for your needs.

Sizes

74 x 222 mm
148 x 222 mm
222 x 222 mm
296 x 222 mm

Thickness

75 mm

Pluses

Quartz

In detailGalassia FiltranteDraining paving

Galassia self-locking filter floor is an ideal choice for construction projects, as it combines its aesthetic beauty with its exceptional water filtration functionality. With a filtration capacity of 5 liters of water per square meter per second, this floor can effectively manage rainwater runoff. Its beauty lies in the wide range of colors available. You can choose from four color options that suit different aesthetics: "Terra d'Umbria" with a brown, white and gray gradient, "Yellow/Grey" with a yellow to gray gradient, "Amber Yellow" with a from yellow to orange and "Grigio Carnico" with a gray to white gradient. The "Filtering Galaxy" floor is available in four sizes: 74x222 mm, 148x222mm, 222x222mm and 296x222mm. This variety of formats allows for design flexibility without compromising the quality and functionality of the floor.

The filtering functionality of Galassia Filtrante floor makes it an exceptional choice for construction. Its porosity allows water to be absorbed and filtered by the material and then pass through a layer of gravel, removing impurities before the water is drained into the soil below. This filtration process helps prevent flooding and waterlogging, keeping the surrounding area dry and safe. In conclusion, the self-locking filtering floor "Filtering Galaxy" offers a perfect combination of beauty and functionality. Its charming colors adapt to different aesthetics, while its filtering capacity of 5 liters of water per square meter per second ensures efficient rainwater management. By choosing the "Filtering Galaxy" floor, you can obtain an extraordinary outdoor environment that combines aesthetics and sustainability.

Galassia Filtrante

Technical specifications

Dimensions and packaging

Mq/pallet: 8,94mq
Kg/pallet: 1370 kg
Kg/mq: 153,24Kg

Level 2B driveability

Access roads to subdivisions from 10 to 300 homes. Pedestrian urban streets with access to limited load service and delivery vehicles

Certifications

CAM
Surface slip/skid resistance
DIN 51130 anti-slip classification
DIN 51097 anti-slip classification
Non-slip flooring DM 14/06/1989 n. 236 par. 8.2.2
Content of recycled materials CAM EDILIZIA (Decree of 06-23-2022)
Solar reflectance index SRI ASTM E1980 (***)
Runoff coefficient >0.2

Specification item

Flooring made with self-locking vibro-compressed concrete blocks. The GALASSIA 75 FILTRANTE model by FAVARO1 is composed of a double layer with filter mixtures. The wear layer having a minimum thickness of 4 mm consists of a mixture of quartz aggregates selected to give optimal performance of the walking surface. Model made up of 4 different geometric formats. Physical and mechanical characteristics according to the UNI EN 1338 standard, test methods applicable without obligation of CE marking: nominal dimensions 74x222-148x222-222x222-296x222 mm, nominal thickness 75 mm, tolerance on nominal thickness ±3 mm, abrasion resistance ≤20 mm, slip/slide resistance (USRV – average value) ≥68. Anti-slip classification R13 according to DIN 51130, anti-slip classification C according to DIN 51097, compliant with the anti-slip requirements referred to in Ministerial Decree 14/06/1989 n.236 for external flooring. Environmental sustainability characteristics: absence of asbestos, content of recycled material according to CAM EDILIZIA (Decree of 23-06-2022) ≥5.4%, solar reflectance index SRI (for gray material or white-based colours) according to ASTM E1980 ≥ 29, Minimum coefficient of permeability at variable load ((k) at 10°C ) ) (according to UNI CEN ISO/TS 17892-11) K= 1.16x10-3, 4176 mm/h, capable of disposing of 100 % of maximum precipitation levels of project rainfall throughout the country, both short and long term. Installed according to the methods indicated by the UNI 11241 standard, excluding the granulometric melt of the bedding sand and clogging, on a ballast prepared according to the type of traffic expected and the state of the natural soil on the basis of the indications of the "Catalogue for the sizing of pavements in urban areas" published by Assobeton, 2005: the materials used for the bedding and ballast layer and their compaction conditions must in any case guarantee, in addition to the necessary load-bearing capacity, also long-term permeability coefficients such as to allow the regular filtration of surface water up to the collection level, or for total infiltration into the subsoil, based on the design rainfall.
