Concrete curve
Concrete curve

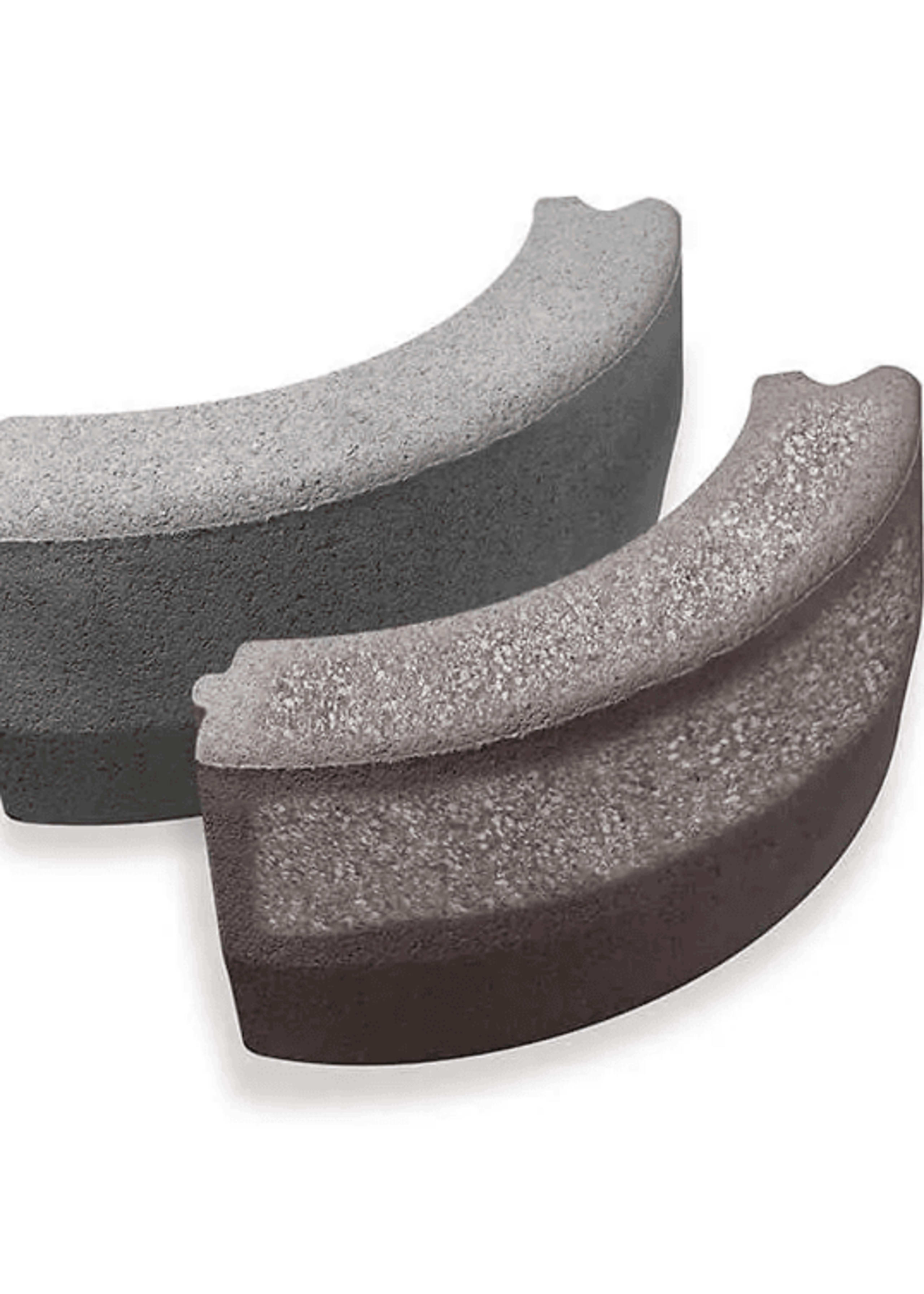

Favaro1 presents the "Road Curve" product, the classic curb used to delimit areas of an urban context and/or with paving. TECHNICAL FEATURES: The “Road Curve” element is available in two variants. Large road curve: -Radius: 500mm; -Top width: 120mm; -Bottom width: 150mm; -Height: 300 mm. Large road curve: -Radius: 500mm; -Top width: 120mm; -Bottom width: 150mm; -Height: 300 mm. Large road curve: -Radius: 500mm; -Top width: 120mm; -Bottom width: 150mm; -Height: 250 mm. Small road curve: -Radius: 100mm; -Top width: 120mm; -Bottom width: 150mm; -Height: 250 mm. QUOTE AND TECHNICAL DATA SHEET: Do you want to know the price of this cordon? Request a free quote and we will reply as soon as possible. If, however, you want to view the dimensions, technical characteristics, physical and mechanical properties of this curb, download the technical data sheet.
Technical specifications
Dimensions and packaging
- pz/pallet: 10 ml
- Kg/pallet: 800 kg
- Kg/Cad: 80Kg
Curva grande r 250 h300
- pz/pallet: 30 ml
- Kg/pallet: 1200 kg
- Kg/Cad: 40Kg
Curva grande r 500 h250
- pz/pallet: 12 ml
- Kg/pallet:576 kg
- Kg/Cad: 48Kg
Curva grande r 100 h250
- pz/pallet: 30 ml
- Kg/pallet:570 kg
- Kg/Cad: 19Kg
Certifications
- CAM
- CE
- Average freeze/thaw resistance in the presence of salts
- Surface slip/skid resistance
- Content of recycled materials DM 11/01/17
